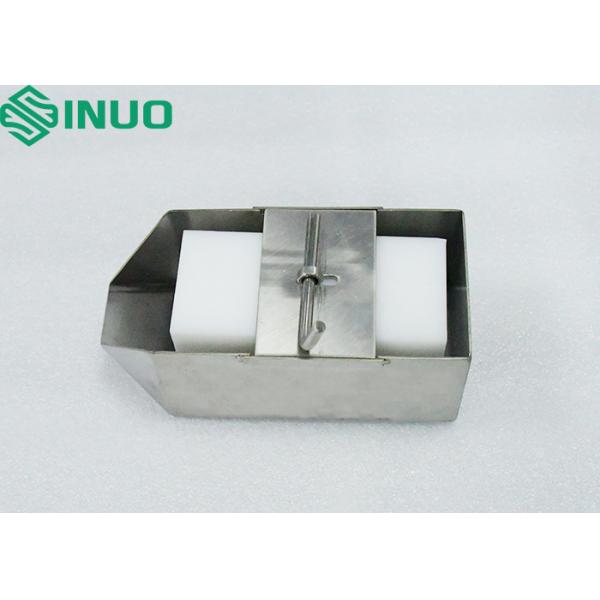

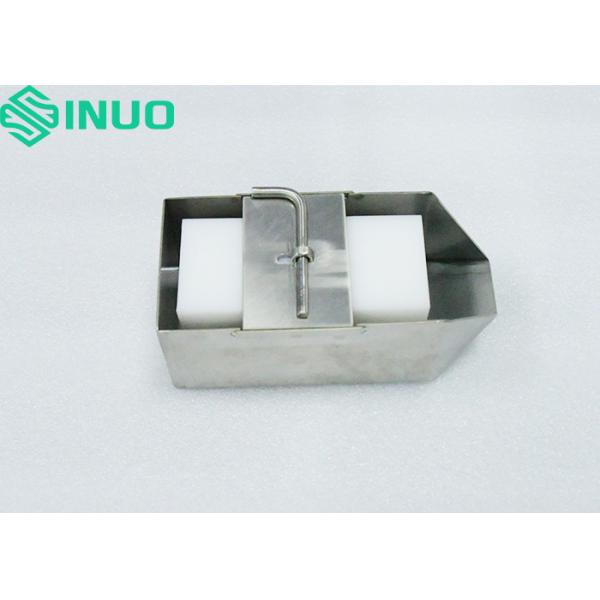

Refrigerator Spillage Test Apparatus for Electrical Safety

Name: Refrigerator Spillage Test Apparatus for Electrical Safety
Brand: Sinuo
Price: 1 USD

Quality Refrigerator Spillage Test Apparatus for Electrical Safety for sale

Brand Name : Sinuo

Model Number : SN1203

Certification : Calibration certificate(Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 100 pcs per month

Delivery Time : 10 Days

Packaging Details : Carton Box

Applied Standards : IEC 60335-2-15:15.2, 15.102, 15.103, etc

Test Samples : Refrigerating appliances

Container Dimensions : 155*70*60mm

Displacement Block Dimensions : 112*50*25mm

Displacement Block Weight : 200g±10g

Spillage port size : 30mm

Contact Now

Spillage Test Apparatus Validating Electrical Safety Of Refrigerators

Product information:

The apparatus for spillage test is designed in accordance with IEC 60335-2-15:15.2, 15.102, 15.103;, IEC 60335-2-24 clause 15.101 & 15.102 and figure 101, IEC 60335-2-14:15.101, IEC 60335-2-25:15.102, IEC 60335-2-24:15.102; IEC 60335-2-89:15.102.

Refrigerator Spillage Test Apparatus for Electrical Safety

Samples and Restrictions:

Refrigerating appliances, such as refrigerators, ice-cream appliances and ice-makers.

Application:

It is used to check the refrigerating appliances shall be constructed so that such spillage does not affect their electrical insulation by subjecting to spillage of liquid from containers onto the inside walls of the cabinet or compartment or onto the top of the cabinet.

Technical Parameters:

Stainless steel container dimensions	1557060mm
Displacement block dimensions	1125025mm
Displacement block weight	200g±10g
Spillage port size	30mm
The height from the spillage port to the bottom	30mm
Release method	Manual

Refrigerator Spillage Test Apparatus for Electrical Safety
