Non-rewireable Accessories Mechanical Strength Flexing Testing Apparatus
Product Information:

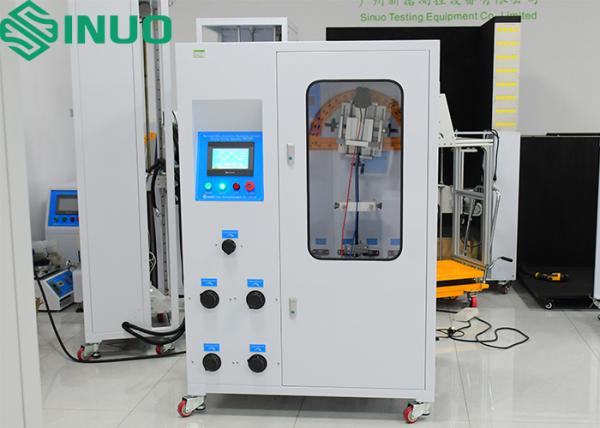

The flexibility testing apparatus is designed and manufactured in accordance with IEC 62196-1:2022 clause 26.4 table 14, IEC 60309-1:2012 clause 24.4 figure 9, and related standards. It is intended for conducting mechanical load flexing tests on vehicle plugs, socket-outlets, couplers, and non-rewireable accessories.
The system is PLC-controlled and operated via a 7-inch color touch HMI, with a servo motor driving the flexing angle. Parameters such as flexing angle, flexing speed, and test cycles can be preset through the touchscreen. The test runs automatically based on the configured settings, and once the preset cycle count is reached, the device stops automatically and issues a completion prompt.
This apparatus offers high-precision digital display, efficient digital frequency conversion, accurate speed control, six-digit memory settings, multifunctional modular fixtures, a rotating-center alignment tool, and a built-in load function capable of supplying voltage to the test sample during testing.
Technical parameters:
| Test Station | Single |
| Electrical Control Method | PLC intelligent integrated control, 7-inch humanized touch interface operation |
| Drive Mode | Servo motor |
| Sample Clamping Method | Mechanical clamping, the position of clamping point is adjustable |
| Flexing Angle | 0-360° can be adjusted freely (default 90°, 45°on either side of the vertical) |
| Flexing Rate | 0-60 cycles / min, can be preset |
| Flexing Cycles | 0~999999 can be preset, default 20000 cycles |
| Load Weights | 20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N |
| Load Power | Built-in, with adjustable phase voltage between conductors 0-250V and current AC0-400A adjustable Note: for load >400A, please use an external power source |
| Test Judgment | Judging by the signals given when the current is conducted or not |
| Equipment Dimensions & Weight | L 850mm *W 800mm *H 1500mm, the whole machine is about 300Kg |
| Power Supply | Three phase AC380V±10%, 50/60Hz |
